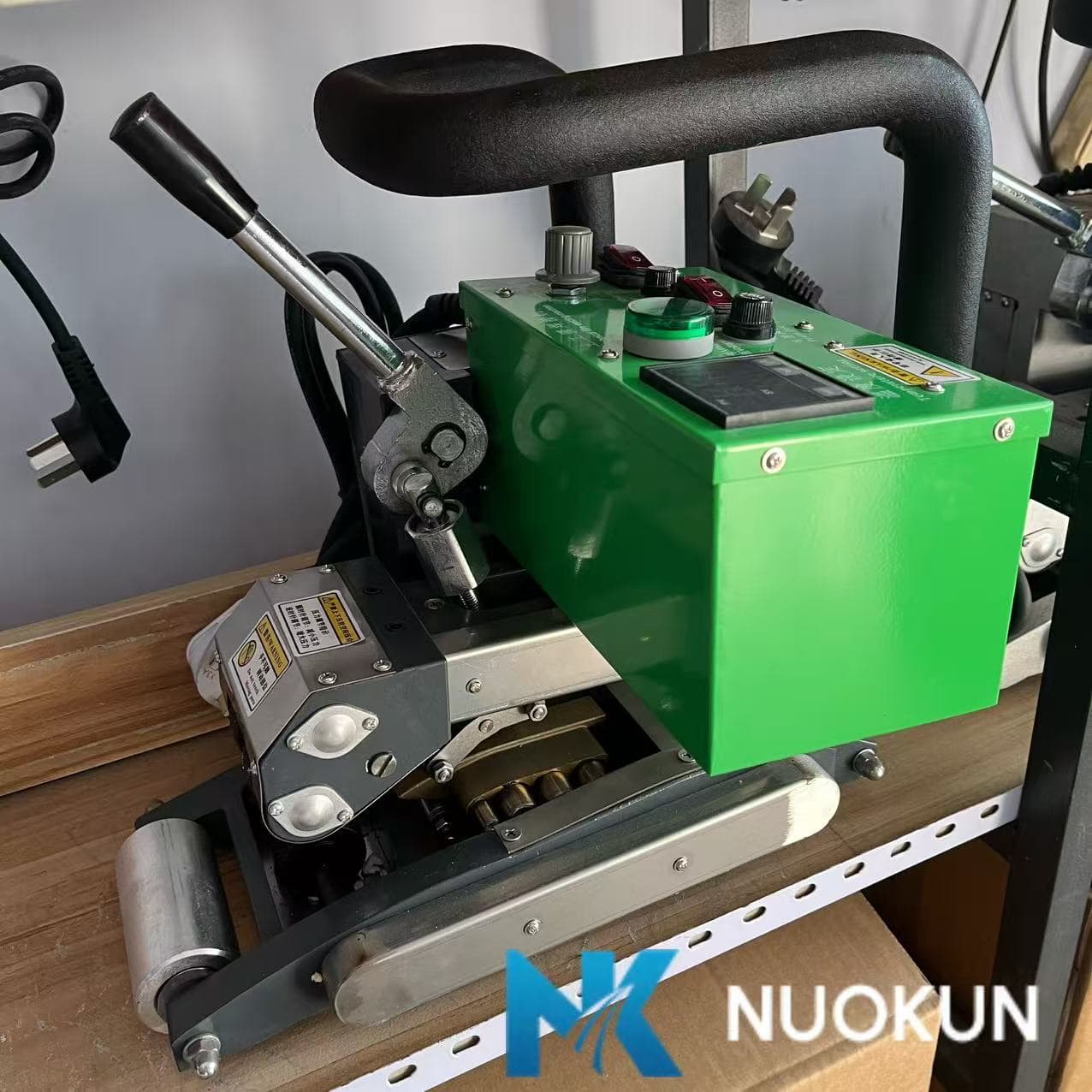

Name: Automatic Wedge Welding Machine for HDPE Geomembrane
Availability: InStock

Design highlights|Automatic wedge welding machine

Hot wedge structure: The two membrane materials are pre-treated by hot wedge heating to achieve rapid melting and fusion, ensuring the strength and consistency of the weld.

High power and high speed propulsion: suitable for large-scale construction scenarios, improving construction efficiency.

High pressure output: Ensures tight material adhesion during welding, reducing voids and blistering.

Wide thickness compatibility: Handles films ranging from thin (0.2 mm) to thicker (3.0 mm), adapting to various engineering needs.

Easy operation: The equipment's rational structure facilitates on-site operation and maintenance.

Main technical parameters

Parameter	Value Range
Rated Voltage	220 V/110V
Rated Frequency	50/60 Hz
Power Range	800 W to ~ 3000 W
Welding Speed	0.5 m/min ~ 8 m/min
Heating Temperature Range	0 ℃ ~ 600 ℃
Weldable Material Thickness	0.2 mm ~ 3.0 mm
Joint Width (Overlap)	100 mm ~ 160 mm
Weld Width	12.5 mm or 15 mm × 2 ; Inner cavity can be fitted with 12mm/15mm/20mm fittings
Net Weight	Approximately 5 kg ~ 13 kg

Applicable materials and scenarios

Material type:

It can weld hot melt plastic film materials such as PE, PVC, HDPE, EVA, and PP.

Typical applications:

Geomembrane construction in highway/railway paving;

Welding of waterproof membranes in tunnels and urban subway tunnels;

Membrane laying in aquaculture ponds;

Lining membrane laying in water conservancy projects, reservoirs, and water storage ponds;

Installation of geomembranes for industrial liquids, mine tailings ponds, and landfills;

Construction of wastewater treatment facilities and waterproofing systems.

Usage suggestions and reminders

Usage suggestions

For welding of membrane materials less than 1.0 mm thick, a silicone pressure roller can be used to protect the membrane material and reduce damage.

For membrane materials with a thickness between 1.0 mm and 1.5 mm, a steel pressure roller can be used to achieve a more stable pressing effect.

When handling materials such as PVC that may release corrosive gases during welding, it is recommended to use stainless steel hot wedge attachments to extend the equipment's service life.

Usage Reminders

When selecting the type of pressure roller, choose according to the film thickness and material characteristics to avoid damaging the film or causing poor welding due to the use of mismatched pressure rollers.

During the welding process, ensure the film is clean, free of foreign objects, and has a smooth surface to achieve a good welding effect.

During high-temperature operation, pay attention to safety precautions, including preventing burns to workers and avoiding heat fumes.

After using the equipment, perform routine cleaning and maintenance to ensure that the hot wedges, pressure rollers, and heating system are free of residue and wear to extend the equipment's lifespan.

Application advantages

High-precision control:

High temperature control accuracy and minimal temperature fluctuations ensure stable welding quality.

Capping SyPowerful output torque: stem Anchorage Zones:

High output torque ensures stable equipment operation and prevents jamming.

Adaptable to various working conditions:

Maintains constant welding speed even under slow advancement, vertical construction, and complex load conditions.

Easy to operate:

The equipment structure is intuitive and the user interface is user-friendly, allowing even engineers with short training periods to quickly learn how to use it.

Improved construction quality:

Using a high-quality welding machine effectively improves the quality of membrane joints, thereby enhancing the overall seepage prevention and waterproofing effect of the project.
