Tri-plane Geonet Drainage Composite | Geocomposite & Geosynthetic Drainage Mat

NK's product is made from high-strength PE resin using a high-precision extrusion line through extrusion and stretching processes. Each batch undergoes testing for tensile strength, drainage capacity, and aging resistance, strictly complying with international geotechnical material standards.

This product is not only used in key domestic projects such as expressways, railway subgrades, and municipal roads, but is also exported to 36 countries and regions, including Brazil, Australia, South Africa, Vietnam, and Turkey, earning high recognition from project owners.

Types & Parameters

Parameter	Value Range	Notes
Thickness	5mm-8mm	Common specifications:, 8mm, 6mm,
Width	1m – 4m	Customizable, commonly used 4m
Length	30m per roll	Can be customized
tensile yield strength	≥ 1.0-5.0	Compliant with GRI/ASTM standards

Advantages & Strengths

3D Drainage:

The upper and lower flat mesh layers and the central ribs form a continuous drainage channel that quickly collects and drains excess water from the soil, reducing pore water pressure.

High Structural Stability:

The three-layer integrated structure resists lateral soil displacement, providing stable support for the engineering structure and preventing localized settlement.

Excellent Reinforcement：

Enhances soil strength and stability, effectively improving the load-bearing capacity of the foundation.

Good Water Permeability:

The pore structure does not hinder water penetration, while preventing soil particle loss and maintaining soil structural integrity.

Strong Environmental Adaptability:

Resistant to acid and alkali corrosion and UV aging, it operates stably in temperatures ranging from -30°C to 60°C, making it suitable for a variety of complex geological environments.

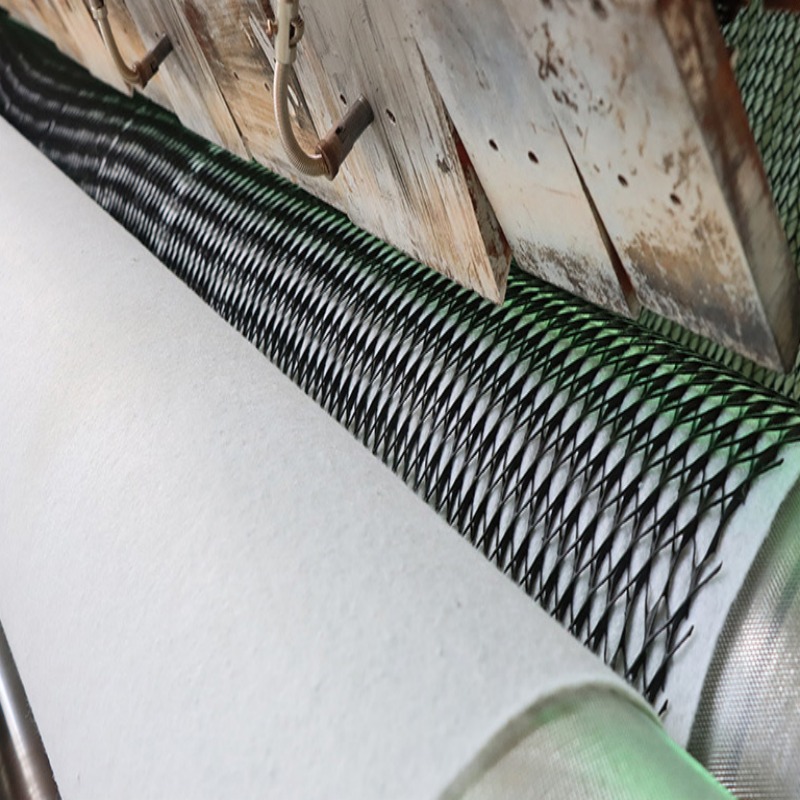

Waterproofing tri-plane geonet composite

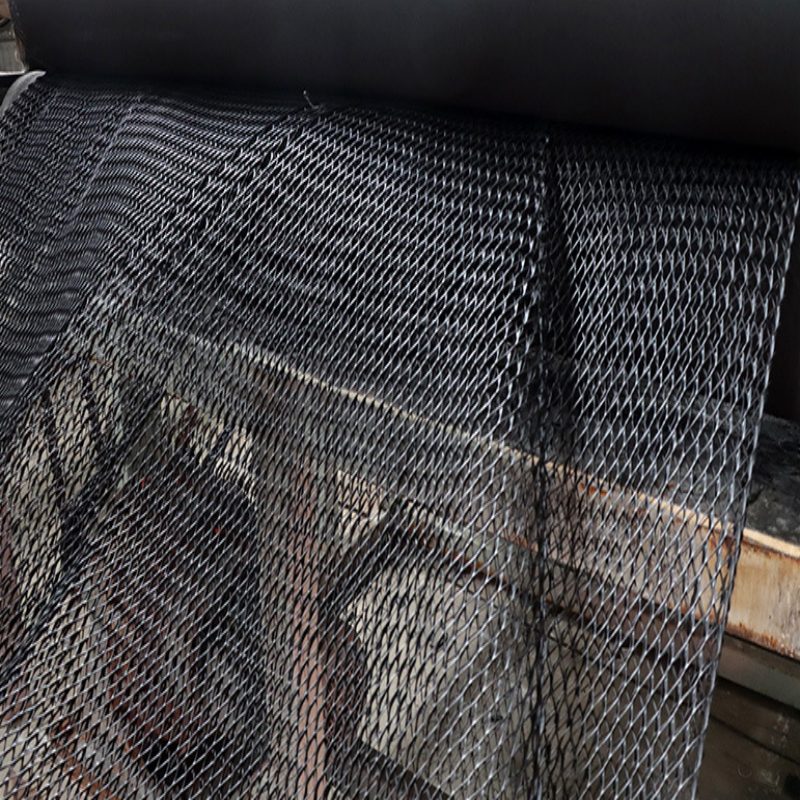

Tri-plane geonet drainage system supplier

Popular Applications

Subgrade Drainage and Reinforcement uses a 6mm-high tri-plane geonet:

laid within the subgrade filler layer to drain water from the subgrade, while also strengthening the overall strength and preventing deformation and cracking.

Underground Garage Roof Drainage uses a 5mm-high tri-plane geonet:

laid above the roof waterproofing layer to form a drainage layer, quickly draining rainwater or seepage water and protecting the waterproofing layer from water pressure damage.

Sports Field Foundation Drainage uses a tri-plane geonet with a 7mm rib height：

Installed between the gravel base and the soil layer, it drains accumulated water from the field, maintains a dry surface, and ensures safety during play.

Dam Filter Drainage uses a tri-plane geonet with a 8mm rib height：

Installed outside the dam's anti-seepage layer, it acts as a filter to drain seepage water from the dam soil and protect the anti-seepage layer from damage caused by water pressure.
