Core Functions and Applications

The true value of our geotextiles lies in their tailored physical and mechanical properties, designed to solve multiple geotechnical challenges simultaneously:

Separation: Prevents the intermixing of distinct soil layers (e.g., aggregate and soft subgrade). This preserves the structural capacity and design thickness of the base course, ensuring long-lasting road performance.

Filtration: Allows water to pass through while retaining fine soil particles. This two-way action prevents clogging and ensures the long-term efficiency of drainage systems behind retaining walls and subsurface drains.

Drainage: Transmits water within the fabric's plane to relieve hydrostatic pressure. It efficiently collects and conveys pore water or seepage, making it essential for embankment and landfill drainage layers.

Reinforcement: Imparts critical tensile strength to soil masses. By stabilizing the soil, it enables the safe construction of steepened slopes, reinforced soil walls, and stable road or rail embankments over soft subgrades.

Protection: Acts as a durable cushioning layer to shield sensitive geomembranes from puncture. It effectively protects liners against sharp aggregates and subgrade irregularities.

Material Types: Woven vs. Non-Woven Geotextiles

Performance is directly linked to the manufacturing process, which creates two primary families of products with distinct characteristics.

Feature	Woven Geotextiles	Non-Woven Geotextiles
Manufacturing Process	Made by interlacing two sets of yarns or flat tapes (polypropylene or polyester) in a crisscross pattern on a loom, creating a distinct grid-like structure.	Manufactured by bonding fibers together through mechanical (needle-punching), thermal, or chemical processes rather than weaving. They have a felt-like, random 3D structure without warp and weft threads.
Core Functions	Reinforcement and separation. They offer high tensile strength and low elongation, effectively distributing soil stress and limiting lateral displacement	filtration, drainage, and protection. They exhibit excellent in-plane and vertical permeability, allowing water to pass while retaining soil, and act as a cushioning layer to protect geomembranes.
Physical & Mechanical Properties	High strength, high modulus, and low elongation (typically ≤25%) with excellent dimensional stability. However, they have larger, uniform pores, resulting in weaker in-plane drainage and filtration capabilities.	Soft, highly extensible (excellent adaptability to deformation), and thick. While their tensile strength is generally lower than woven fabrics of the same specification, they offer superior puncture resistance, tear strength, and cushioning properties.
Typical Application	Soft soil treatment, highway/railway subgrade reinforcement, steep slope stabilization, reinforced soil retaining walls, and dam/seawall reinforcement where significant tensile loads are expected.	Road base separation, drainage and filtration behind retaining walls/french drains, protection of liners in landfills/artificial lakes, coastal revetments, and various projects requiring drainage and cushioning.

As a leading non-woven geotextile manufacturer and supplier, we offer a comprehensive range of products optimized for specific weight, strength, and permeability requirements.

Engineering Applications Across Sectors

The multifunctionality of our geotextiles makes them indispensable in diverse infrastructure projects, delivering long-term structural integrity and cost-efficiency:

Roadways & Railways

Separation & Stabilization: Placed between the soft subgrade and the aggregate base, our geotextiles effectively prevent the "pumping" of fine particles into the base course. By distributing traffic loads and restricting lateral movement, they significantly reduce rutting and extend pavement service life. This is a primary application for both woven and non-woven geotextiles.

Subsurface Drainage: High-permeability geotextiles are widely utilized in edge drains and behind retaining structures to manage subsurface water efficiently, preventing hydrostatic pressure buildup and ensuring year-round road stability.

Hydraulic & Marine Engineering

Erosion Control & Filtration: Installed beneath riprap or revetment systems on riverbanks and shorelines, our filter fabrics allow water pressure to equalize while retaining fine soil particles. This critical two-way action protects embankments from severe scour and structural failure.

Seepage Management: Acting as a reliable drainage layer in dam cores, canal linings, and behind seawalls, they safely control seepage forces and maintain the overall stability of hydraulic structures.

Environmental & Geotechnical Projects

Soft Ground Reinforcement: In challenging soft soil conditions, high-strength woven geotextiles are deployed to create stable working platforms. They enable safe embankment construction over weak subgrades by improving bearing capacity and reducing differential settlement.

Geomembrane Protection: Non-woven geotextiles are routinely specified as a protective cushioning layer in landfills, artificial ponds, and tunnels. They shield sensitive waterproofing membranes from puncture by sharp aggregates or subgrade irregularities, ensuring the integrity of the containment system.

Conclusion

Geotextiles have revolutionized geotechnical design by providing engineered solutions to fundamental soil-related challenges. From robust woven geotextiles that stabilize road subgrades to high-permeability non-woven fabrics that filter and drain, our materials deliver enhanced performance, cost-efficiency, and longevity.

By understanding the distinct properties of each type, our engineering team can help you select the optimal product for your specific needs. Whether your project requires separation, filtration, reinforcement, or protection, we are committed to helping you build more resilient and sustainable infrastructure for the future.

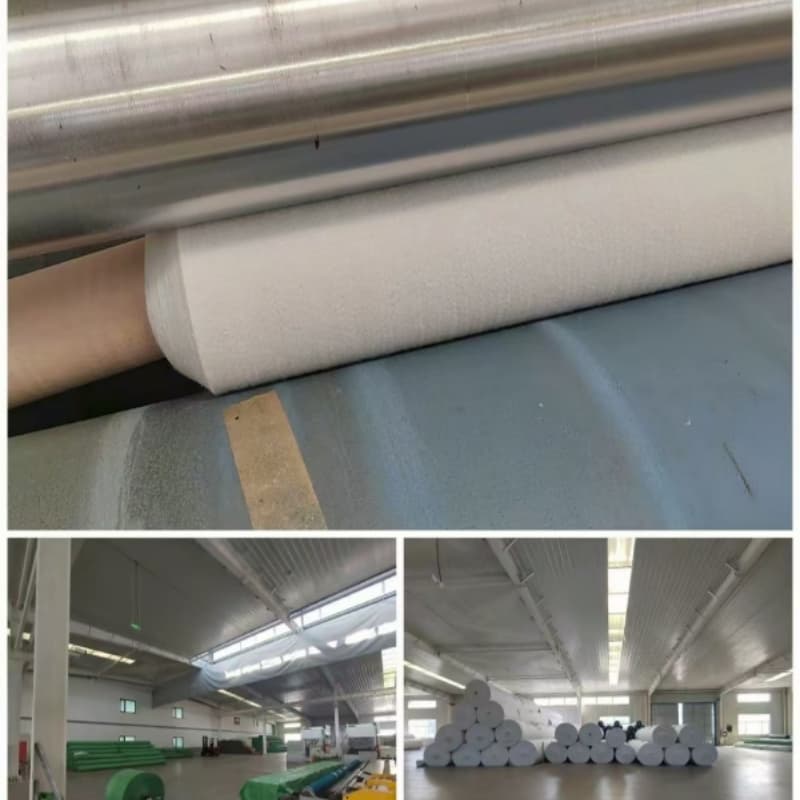

Packing and Delivery

FAQ

1、Why choose us?

Certification: CE/ISO 9001/GRI GT13/ASTM

Rapid delivery: Shipped directly from our Shandong manufacturing base within 15 days (FOB Qingdao Port).

2. Rigorous Quality Control

Pre-production Samples: Always confirmed before mass production begins.

Final Inspection: 100% inspected prior to shipment to ensure flawless quality.

Expert Support: For any inquiries regarding our products or services, please feel free to contact us.Pre-sample production is always performed before mass production;

3、Can we provide samples? Is there a charge?

Yes, we can provide samples free of charge, but the buyer is responsible for the shipping costs.

If you place an order after confirming the sample, we will refund the shipping fee or a portion of the order value.
