With years of experience in geosynthetic materials, Nuokun Geo supplies GCL products for landfill liners, ponds, containment systems, water infrastructure, and other seepage control projects. We focus on consistent material quality, stable production, and practical solutions that meet different project requirements. From product selection and technical specifications to packaging and international delivery, our team works closely with customers to keep each order clear and efficient. Today, our products are supplied to clients across different regions and project environments, earning long-term trust through dependable quality and responsive service. Wherever the project is located, Nuokun Geo provides a reliable GCL supply partner for professional seepage control applications.

Product Overview | What Is a Geosynthetic Clay Liner ?

Nuokun Geo’s Geosynthetic Clay Liner (GCL) is a factory-manufactured bentonite barrier used to control seepage in modern containment and waterproofing systems. It is made by placing natural sodium bentonite between layers of high-strength geotextiles and mechanically securing the layers through needle-punching.

When the GCL comes into contact with water, the sodium bentonite swells and forms a dense, low-permeability gel. This swelling action helps seal small gaps and provides a continuous barrier against water and other liquids, making GCL a practical alternative to traditional compacted clay liners in many applications.

Compared with loose clay placement, GCL is supplied in rolls, making transportation, handling, and installation more straightforward. Different constructions are available for specific project needs, including reinforced GCL and geomembrane-coated GCL, with the choice depending on site conditions and the required level of seepage control.

Key Technical Advantages of Nuokun Geo GCL

1. High-purity Bentonite With Superior Swelling Capacity

Nuokun Geo GCL uses carefully selected natural sodium bentonite with strong swelling and ion-exchange properties. When hydrated, the bentonite expands and forms a dense, low-permeability sealing layer that helps restrict the movement of water and other liquids through the liner system.

2. Reinforced Needle-Punch Structure for Long-Term Stability

The needle-punching process mechanically locks the geotextile layers together and helps keep the bentonite evenly distributed within the liner. This reinforced structure improves dimensional stability and reduces the risk of bentonite displacement during handling, installation, and long-term service, including on slopes and uneven ground.

3. Ultra-Low Hydraulic Conductivity

Under suitable test conditions, Nuokun Geo GCL can achieve hydraulic conductivity as low as 10⁻⁹ cm/s. This low permeability helps provide reliable seepage control and makes GCL suitable for demanding containment and waterproofing applications.

4. Good Resistance to Environmental Conditions

The GCL is designed to maintain stable performance under a range of environmental conditions. Its resistance to common chemical exposure, freeze-thaw cycles, and changing site conditions makes it suitable for long-term use in various civil and environmental engineering projects.

5. Lightweight and Easy to Install

Compared with traditional compacted clay liners, GCL is supplied in rolls and requires much less material handling and site preparation. It can be transported and installed efficiently without the large-scale earthmoving equipment normally required for placing and compacting thick clay layers, helping reduce construction time and overall installation costs.

6. Natural Self-Sealing Performance

When the bentonite layer becomes hydrated, it swells to fill small gaps and minor discontinuities within the liner. This natural swelling behavior can help maintain the barrier function after minor installation-related disturbances, provided the GCL remains properly confined and hydrated.

Types & Specifications

Item	Specification	Notes
Specifications	3-layer and 4-layer structural options	Can cover geomembrane (standard is 3 layers structure)
Width	2-6 m	customizable
Length	1-30 m	Depends on thickness
Bentonite swelling index (mL/2g)	≥ 24	Meets GRI/ASTM standards
tensile strength	≥ 700(N/100mm)	High flexibility, High-strength product
permeability coefficient/(m/s)	≤5.0x10^-12	Meets ultra-high anti-seepage standard
Filtration loss / mL	≤18	Good slurry stability,resists segregation

Typical Applications

Nuokun Geo GCL is used in a wide range of environmental protection, water management, and containment projects where reliable seepage control is required. Its low permeability, swelling behavior, and reinforced structure make it suitable for both new construction and remediation applications.

Municipal & Hazardous Waste Landfills

Used as part of landfill liner and capping systems to help control leachate migration and protect surrounding soil and groundwater.

Tailings Dams & Heap-Leaching Pads

Provides a low-permeability barrier for mining facilities, helping contain process water, leachate, and potentially contaminated liquids.

Artificial Lakes, Ponds, Canals & Dams

Used beneath or together with other lining systems to reduce water loss and improve seepage control in water-retaining structures.

Underground Structures & Tunnel Waterproofing

Helps control groundwater movement around underground structures and can be incorporated into composite waterproofing systems.

Reservoirs, Firewater Tanks & Irrigation Ponds

Provides an additional seepage barrier for water storage facilities, helping reduce leakage and maintain water retention.

Oil & Gas Containment Areas

Used in containment systems where protection against liquid migration and soil contamination is required.

Contaminated Site Isolation & Remediation

Can be incorporated into containment and remediation systems to limit the movement of contaminated liquids and help isolate affected areas.

From landfill containment to water-retaining structures and site remediation, Nuokun Geo provides GCL products and barrier system solutions based on project conditions, liner configuration, and performance requirements.

Nuokun Geo GCL | Product & Service Adantages

Strict Quality Control

Nuokun Geo maintains quality control throughout the production process, from bentonite selection and raw material inspection to finished-product testing. Each batch is checked for key properties such as swelling performance, hydraulic conductivity, tensile strength, and mass per unit area, with testing carried out according to applicable ASTM and GRI requirements. This helps ensure consistent product performance from one shipment to the next.

High Customizability

Different projects require different barrier structures. Nuokun Geo offers several GCL configurations to meet specific site and performance requirements, including

Reinforced Needle-Punched GCL – enhanced internal stability for demanding installation conditions.

Geomembrane-Coated GCL (GCL + HDPE) – combines the swelling barrier of bentonite with the low permeability of HDPE geomembrane.

Anti-Salt GCL – designed for applications where saline or high-ionic-strength conditions may affect conventional bentonite performance.

Heavy-Duty Barrier GCL – suitable for projects requiring additional barrier performance and structural protection.

Product construction, bentonite type, geotextile configuration, dimensions, and packaging can be adjusted according to project specifications.

Professional Technical Support

Nuokun Geo supports customers throughout the project process, from initial product selection and specification matching to installation guidance. Our team can review project requirements, recommend suitable GCL configurations, provide technical documentation, and assist with practical installation considerations. The goal is simple: make product selection and project execution more straightforward for engineers, contractors, and procurement teams.

Featured GCL Application Cases

1. Large Municipal Landfill Project

Nuokun GCL was incorporated into a multilayer composite liner system together with an HDPE geomembrane. The GCL provided an additional low-permeability barrier beneath the geomembrane, helping control leachate migration and adding another layer of protection to the landfill liner system. The selected system was designed to meet the project’s environmental and seepage-control requirements.

2. Landscape Artificial Lake Project

For an artificial lake project, Nuokun GCL was used as part of the composite seepage-control system. Its swelling bentonite layer helped accommodate minor ground movement and differential settlement while maintaining a continuous barrier. The roll-based installation also simplified site handling and helped reduce construction time compared with conventional compacted clay placement.

3. Mining Tailings Pond Project

For a mining tailings pond exposed to chemically aggressive and saline seepage, Nuokun Geo supplied a GCL configuration selected for the project conditions. The bentonite barrier, combined with the reinforced geotextile structure, helped provide reliable seepage control and additional protection for the containment system. The solution was selected to address the site’s specific chemical and environmental requirements.

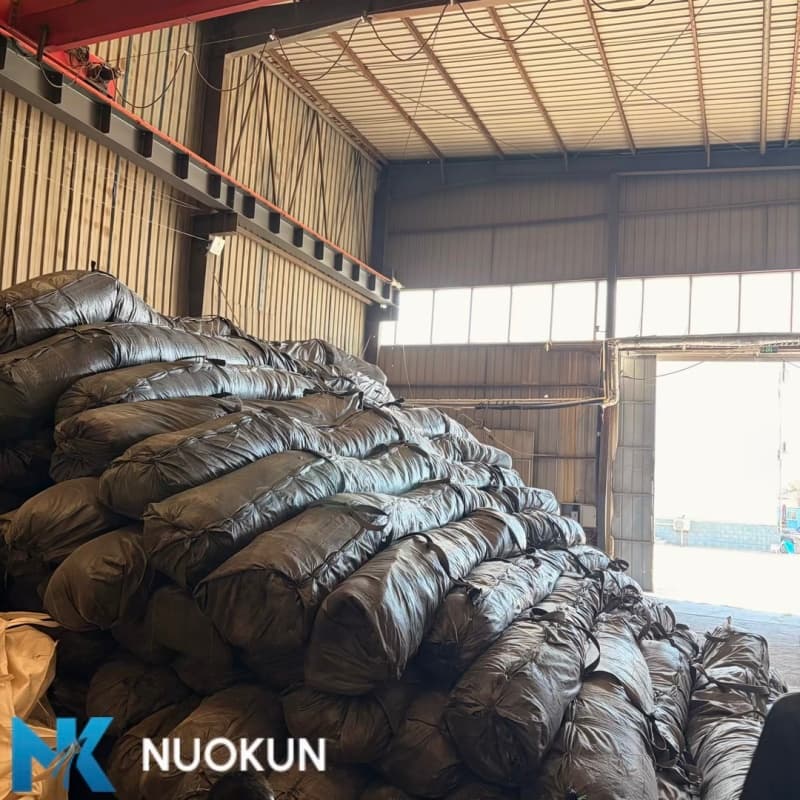

Packing And Delivery
